Description

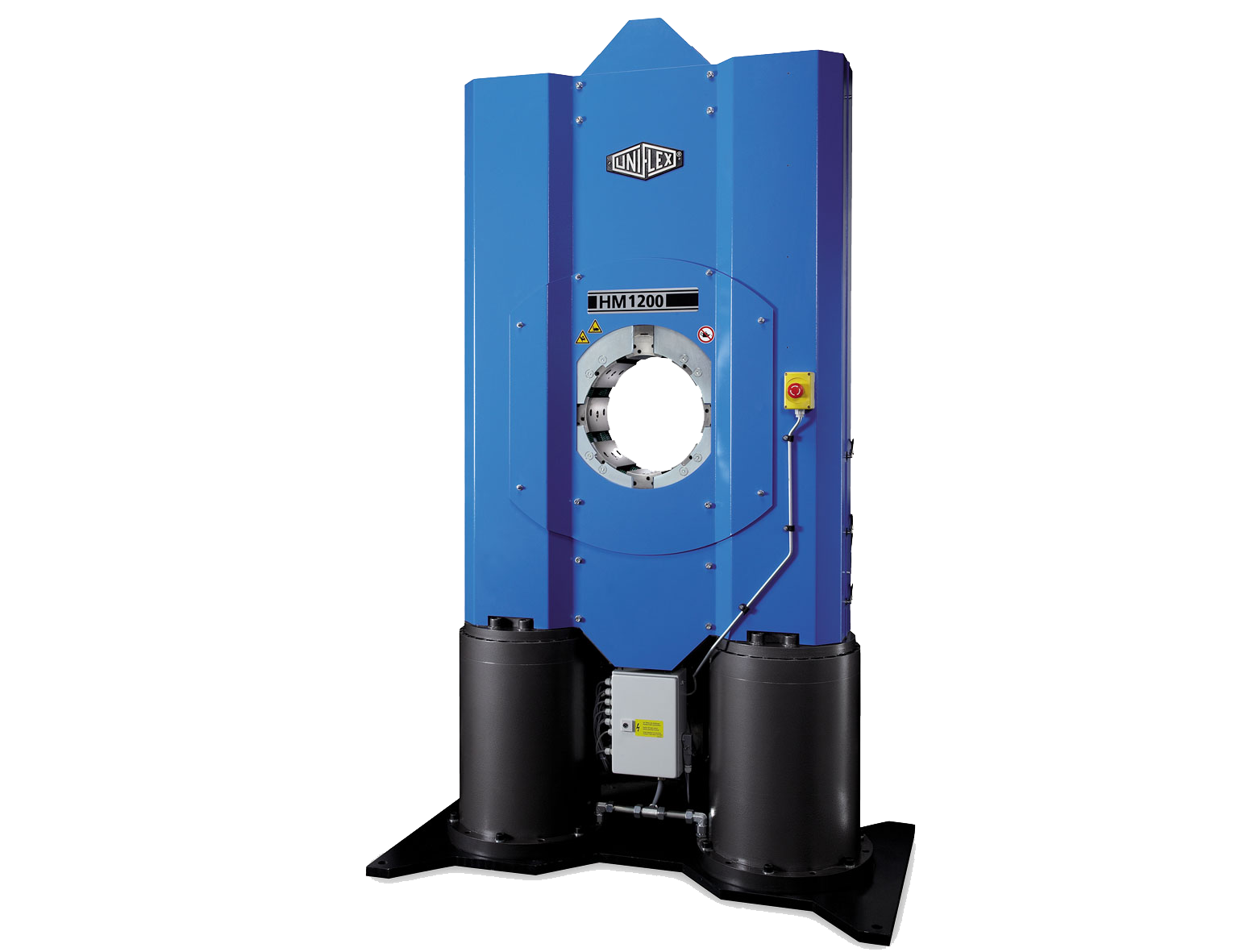

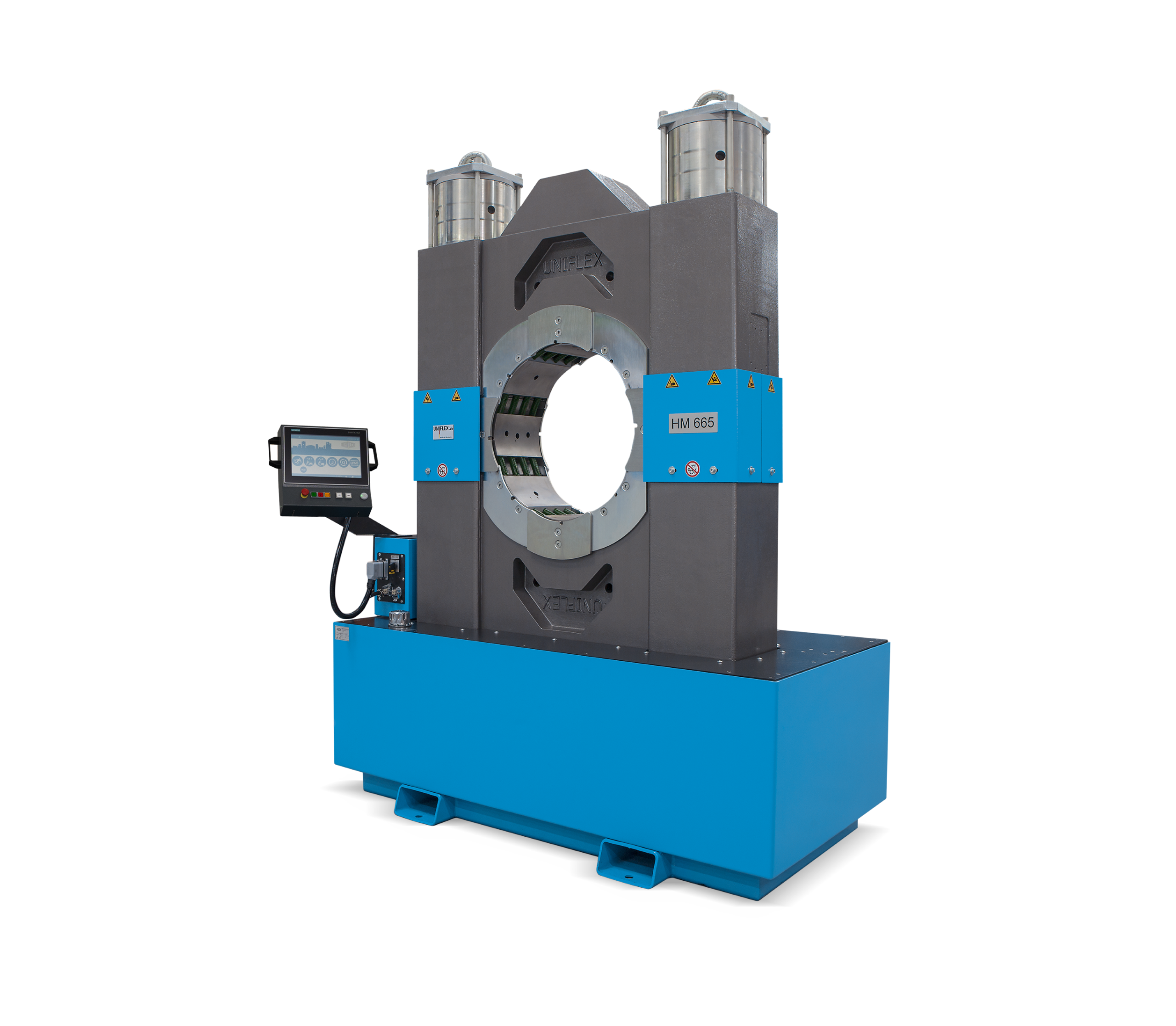

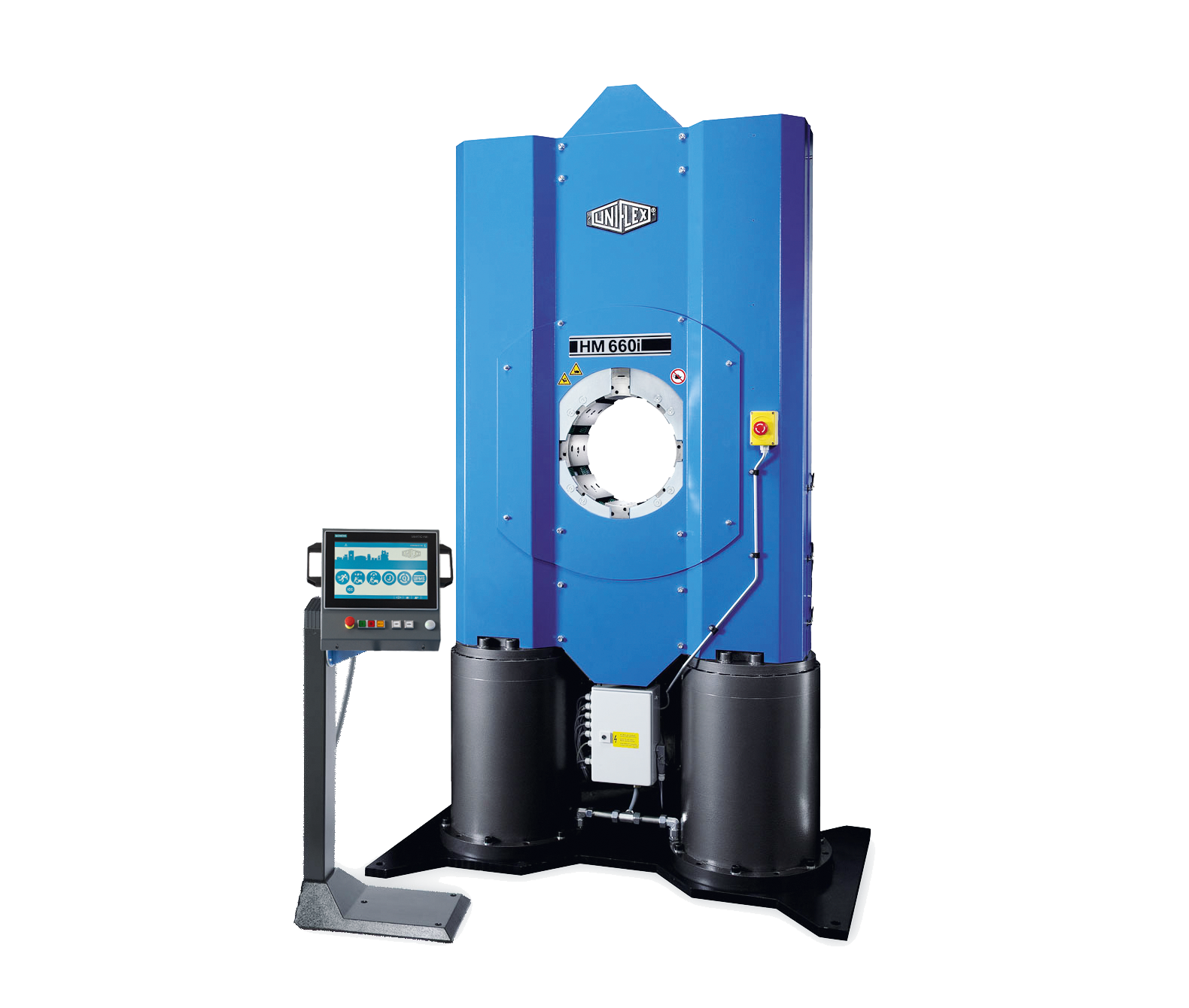

| HM 660 | HM 665 | HM 1200 | |
|---|---|---|---|
| Crimp force (kN/Ton) | 8000 / 800 | 6000 / 600 | 12000 / 1200 |
| Crimp range | 325mm | 380mm | 325mm |
| SAE R15 / 4SH* 1 Piece | 3″ | 3″ | 3″ |
| SAE R15 / 4SH* 2 Piece | 3″ | 3″ | 3″ |
| Industrial** | 10″ | 12″ | 10″ |
| 90° Elbows | 3″ | 3″ | 3″ |
| Speed (seconds) – Close | 15 | 15 | 11 |
| Speed (seconds) – Crimp | 2 | 2 | 1,5 |
| Speed (seconds) – Open | 15 | 15 | 11 |
| No grease: 20% less friction | ✓ | ✓ | ✓ |
| Control | Control C + Touch | Control C + Touch | Control C + Touch |
| Opening | + 120mm | + 120mm | + 120mm |
| Opening without dies | 395mm | 450mm | 395mm |
| Type of dies | 237 L / 239 L / 246 L | 237 L / 239 L / 246 L | 237 L / 239 L / 246 L |
| Noise Level | 69 dBA | 69 dBA | 69 dBA |
| Drive | 18,5 kW | 18,5 kW | 18,5 kW |
| Oil | 300 L | 300 L | 300 L |
| L x W x H (mm) Machine | 1400 x 1050 x 2470 | 1400 x 1050 x 2470 | 1400 x 1130 x 2660 |
| L x W x H (mm) Power unit | 700 x 1160 x 1360 | 700 x 1160 x 1360 | 1100 x 1300 x 1500 |
* Fittings may vary.
** Without flange.
Optional Extras
Accessories
Ancillary
Data capture and transfer
Pressure force monitoring (PFM)
Bespoke software
Paperless
Worksheet Scanner
