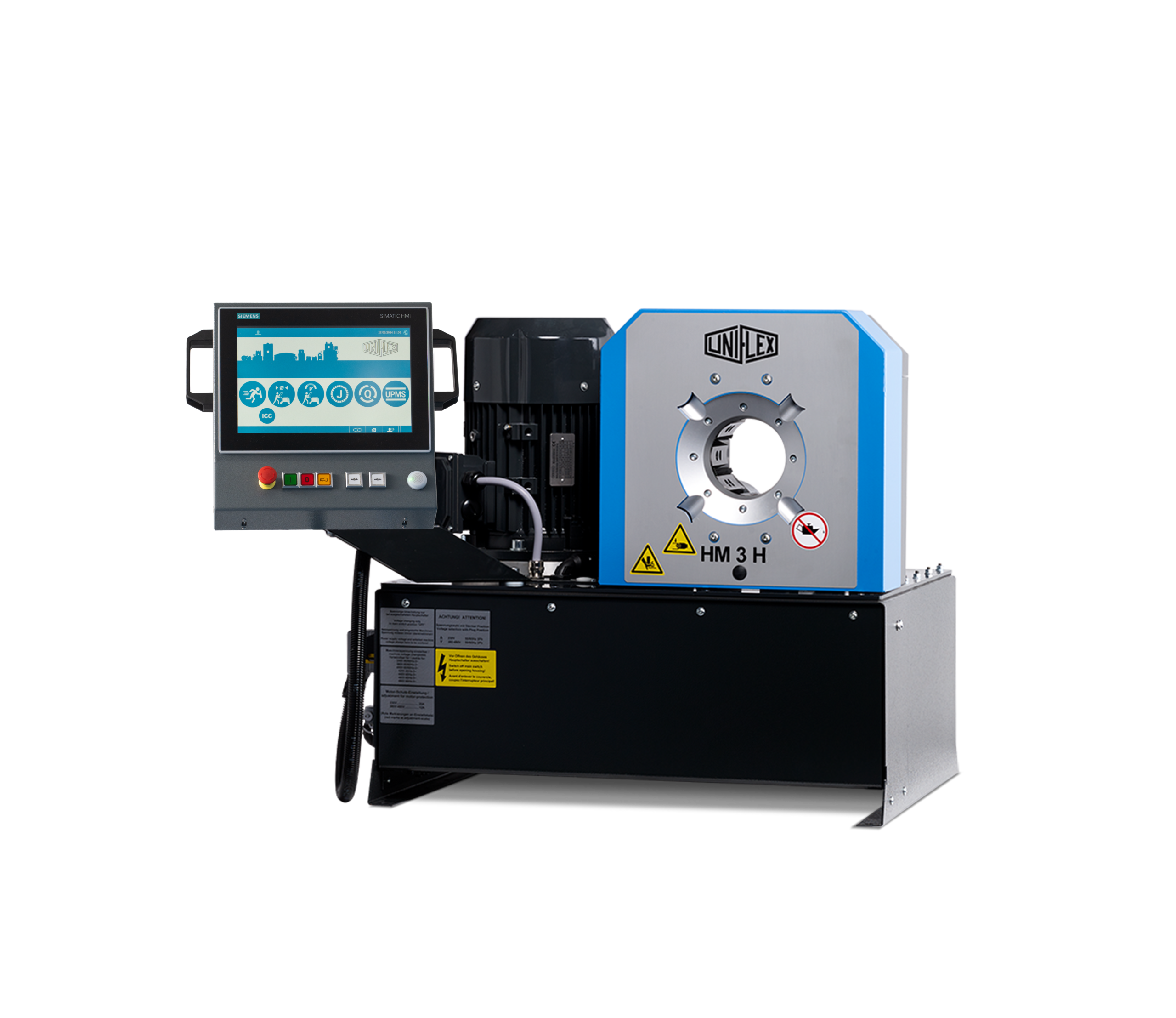

Uniflex Hose Crimper – HM 3 H

Workshop Production Crimper

Due to its narrow and innovative construction, high level of user friendliness, and long service life, the HM3H sets new standards for quality and cost effectiveness.

Thanks to its compact construction, it allows easy, uncomplicated, and “fast” crimping. The intuitive Uniflex Software on the convenient Control C.2 Touch completes the HM3H and ensures product quality.

Description

HM 3 H
Crimp force (kN/Ton)750 / 75
No grease: 20% less friction
SAE R12 / 4SP* 2 Piece1″
4SH* 2 Piece3/4″
SAE R15* / 2 Piece3/4″
Industrial2″
90° Elbows1 1/2″
Speed (seconds) – Close8,3
Speed (seconds) – Crimp8,3
Speed (seconds) – Open13,8
ControlControl C.2 + Touch
Opening+ 35mm
Opening without dies105mm
Type of dies239-xx-Ø-yy
Drive5,5 kW 3 VAC
Oil50 L
Weight193 kg
L x W x H (mm)720 x 600 x 672
Noise level53 dBA

* Fittings may vary.

Optional Extras

Accessories
Ancillary

Datasheet Download

HM 3 H

Additional information

4 Wire 2 Piece Fitting

3/4", 1"

6 Wire 2 Piece Fitting

3/4"

Industrial Hose

2"
