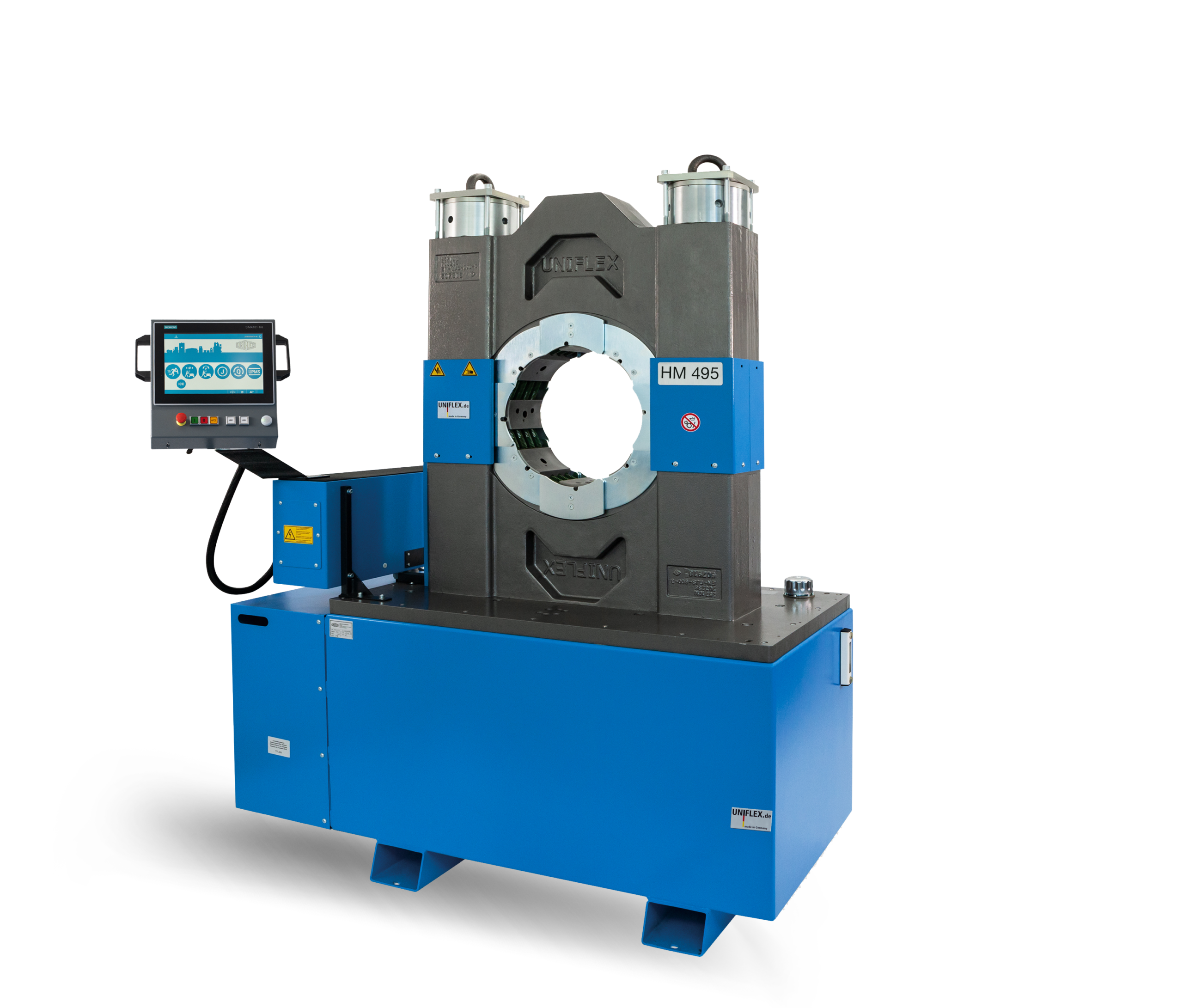

Ultra High Pressure Hose Crimper – HM 450, HM 480, HM 495

Lean Production Crimper & UHP

Due to their compact, all-round accessible construction, high level of user friendliness, and long service life, the HM4xx set the standard for quality and cost effectiveness.

The crimpers‘ particularly large opening stroke and the use of long master dies allow you to crimp all types of fittings and up to 8″ industrial hoses.

Description

HM 450HM 480HM 495
Crimp force (kN/Ton)4000 / 4004800 / 4806000 / 600
No grease: 20% less friction
ControlControl C.2 + TouchControl C.2 + TouchControl C.2 + Touch
SAE R15 / 4SH* 1 Piece3″3″3″
SAE R15 / 4SH* 2 Piece3″3″3″
Industrial**6″ (12″)6″ (12″)6″ (12″)
Elbows3″3″3″
Max. crimp range310mm310mm310mm
Opening+130+150+150
Opening without dies360mm380mm380mm
Master dies length150mm150mm150mm
Type of dies245/237/239-xx-Ø-yy245/237/239-xx-Ø-yy245/237/239-xx-Ø-yy
Speed (seconds) – Close181818
Speed (seconds) – Crimp1.41.31
Speed (seconds) – Open202020
Noise level62 dBA62 dBA62 dBA
Drive5.5 kW 3 VAC5.5 kW 3 VAC5.5 kW 3 VAC
Oil300 L300 L300 L
L x W x H (mm)730 x 1590 x 1972730 x 1590 x 2015730 x 1590 x 2076
Weight1900 kg2400 kg2400 kg
HiDS (High Pressure Pump Dynamic Suction)

* Special dies (reduced opening).
** Pipe fittings without flange.

Optional Extras

Accessories
Paperless
Worksheet Scanner
Pressure force monitoring (PFM)
Data capture and transfer
Bespoke software

Datasheet Download

HM 450, HM 480, HM 495

Additional information

6 Wire 1 Piece Fitting

3"

6 Wire 2 Piece Fitting

3"

Industrial Hose

6", 8"
