Uniflex HM 200 – HM 200, HM 200 Ecoline

Low Pressure Crimper

Do workshops and mobile service teams have to do without the performance and reliability of stationary, large presses? Definitely “no”, says UNIFLEX, and with its compact, universally applicable workshop presses it is proving that the legendary slide bearing technology can also show its advantages in lightweight, cost-effective equipment that fits in almost every vehicle and every workshop.

Description

HM 200HM 200 Ecoline
Crimp force (kN/Ton)1,300/1301,300/130
No grease 20% less friction
ControlControl AControl A
SAE R 12/4SP* 1 piece fitting1 1/2″1 1/2″
SAE R 15/4SH* 2 piece fitting1″1″
SAE R 12/4SP* 2 piece fitting1 1/4″1 1/4″
Industrial2″2″
90° Elbows1 1/2″1 1/2″
Max. Crimp range (mm/inch)70 / 2.7670 / 2.76
Opening (mm/inch)+30 / +1.18+30 / +1.18
Opening without dies (mm/inch)100 / 3.94100 / 3.94
Master dies length (mm/inch)75 / 2.9575 / 2.95
Speed (mm/sec)
Close
Crimp
Open

3.5
3.5
5.9

3.5
3.5
5.9
Noise level69 dBA69 dBA
Drive3 kW 3 VAC3 kW 3 VAC
Oil40 l40 l (DC 4 l)
L x W x H (mm)800 x 530 x 630420 x 535 x 520
Power Unit L x W x H (mm)300 x 450 x 560
Weight140 kg92 kg (without power unit), 130 kg (with die package)
Options
12 VDC/24 VDC
1 VAC2.2 kW
Control C.2/IPC

Uniflex HM 200 – The unrivaled classic hose press in the 1 ¼” range offers an unbeatable benchmark for quality and economy due to its narrow innovative design, high user-friendliness, versatility, and long service life.

Their compact design allows ergonomic work in the workshop. The use of the solid base dies enables the pressing of all types of valves and the proven lubrication-free slide-bearing technology reduces maintenance costs.

Variations

HM 200 DC or

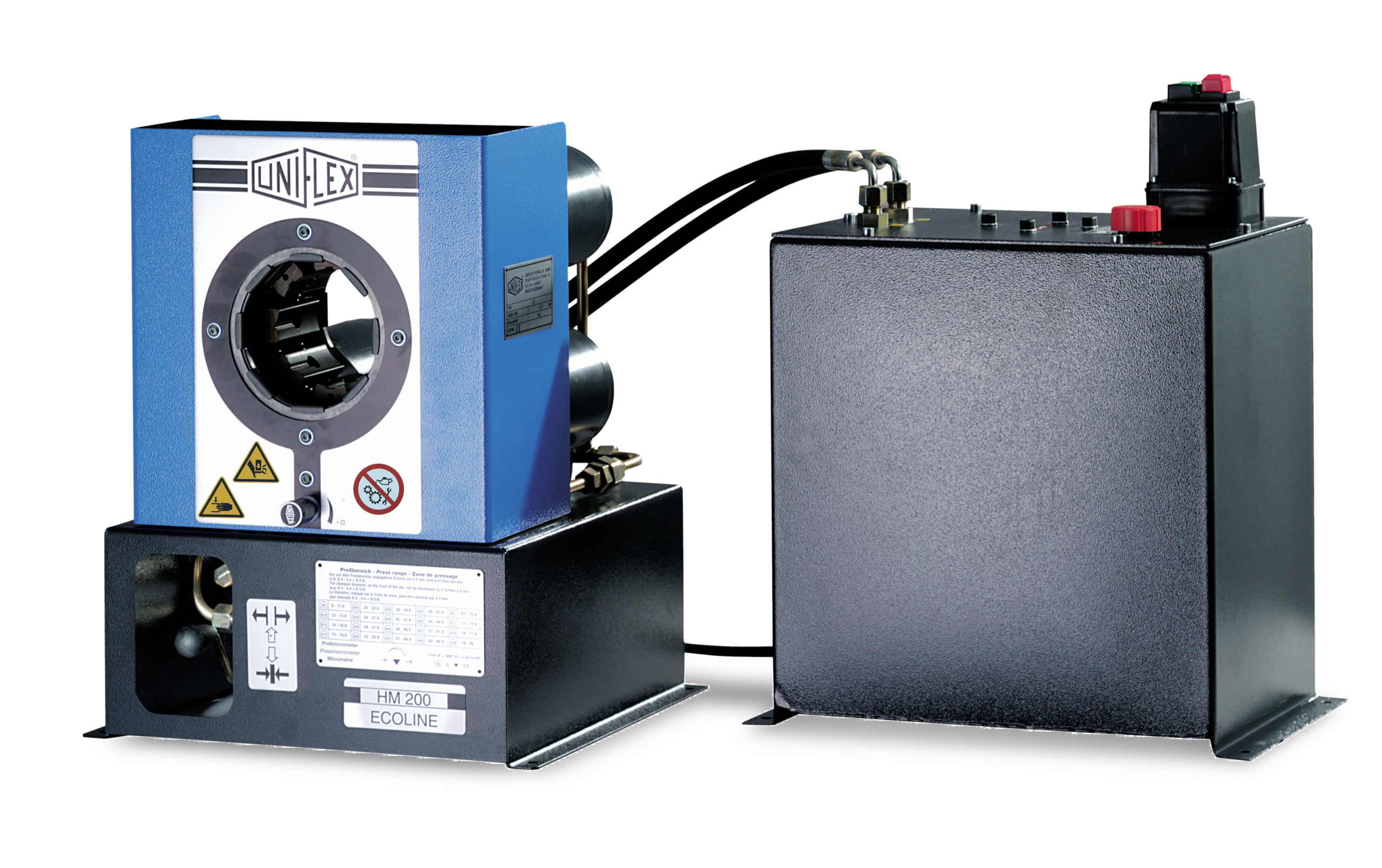

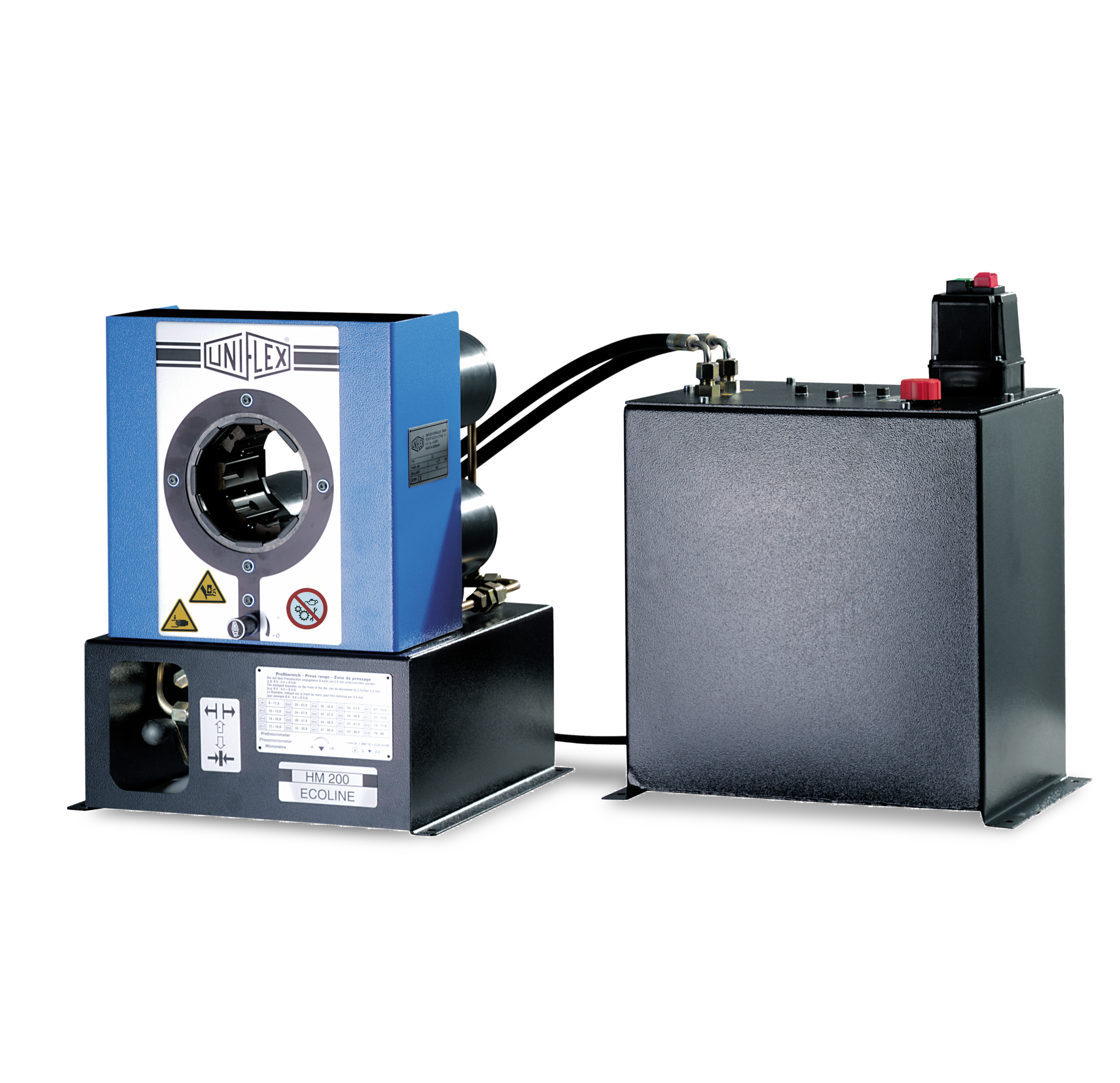

HM 200 Ecoline variant



Datasheet Download

HM 200 DC, HM 200 Ecoline Variant

Additional information

4 Wire 1 Piece Fitting

1 1/2"

6 Wire 2 Piece Fitting

1"

4 Wire 2 Piece Fitting

1 1/4"

Industrial Hose

2"
