Description

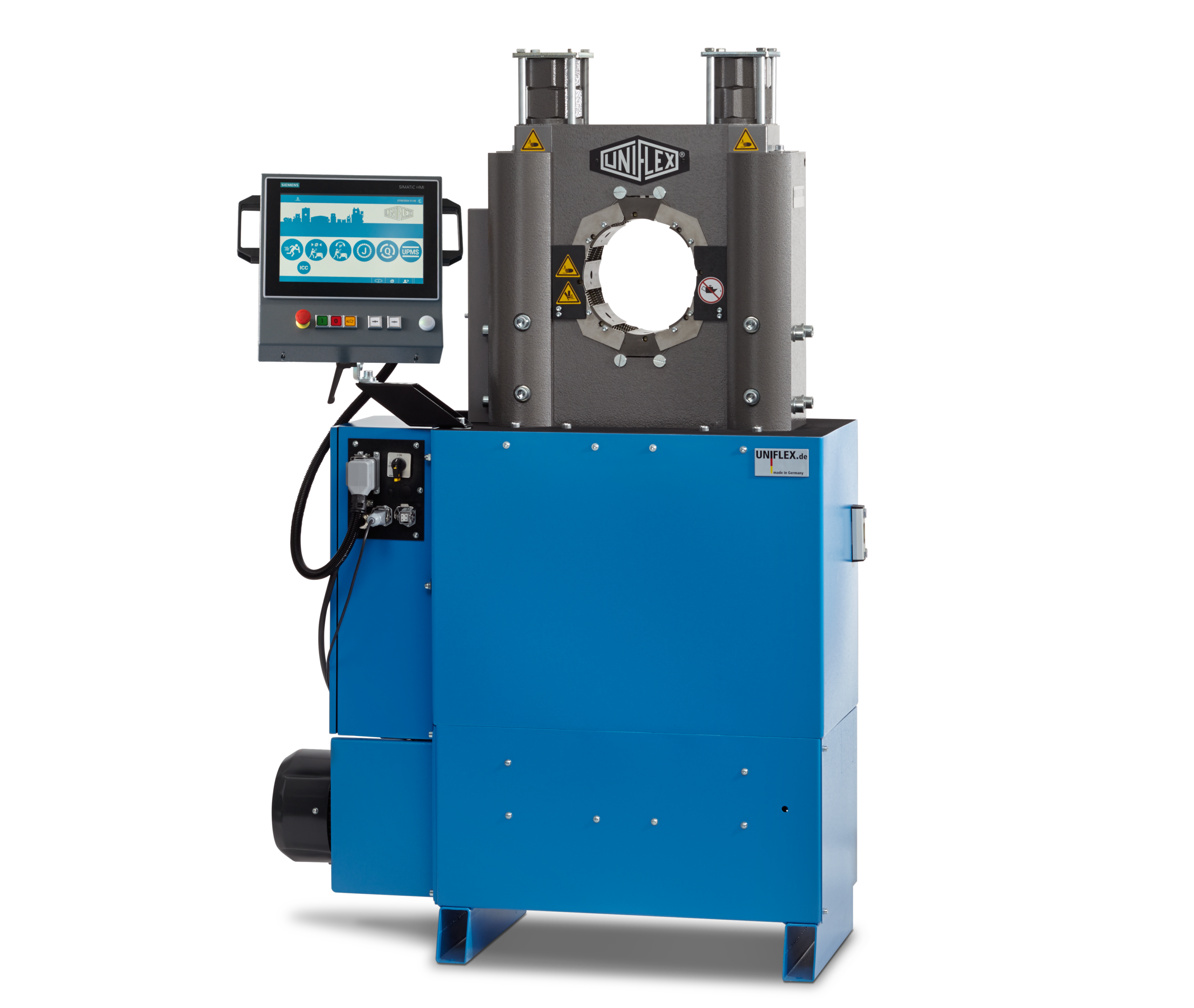

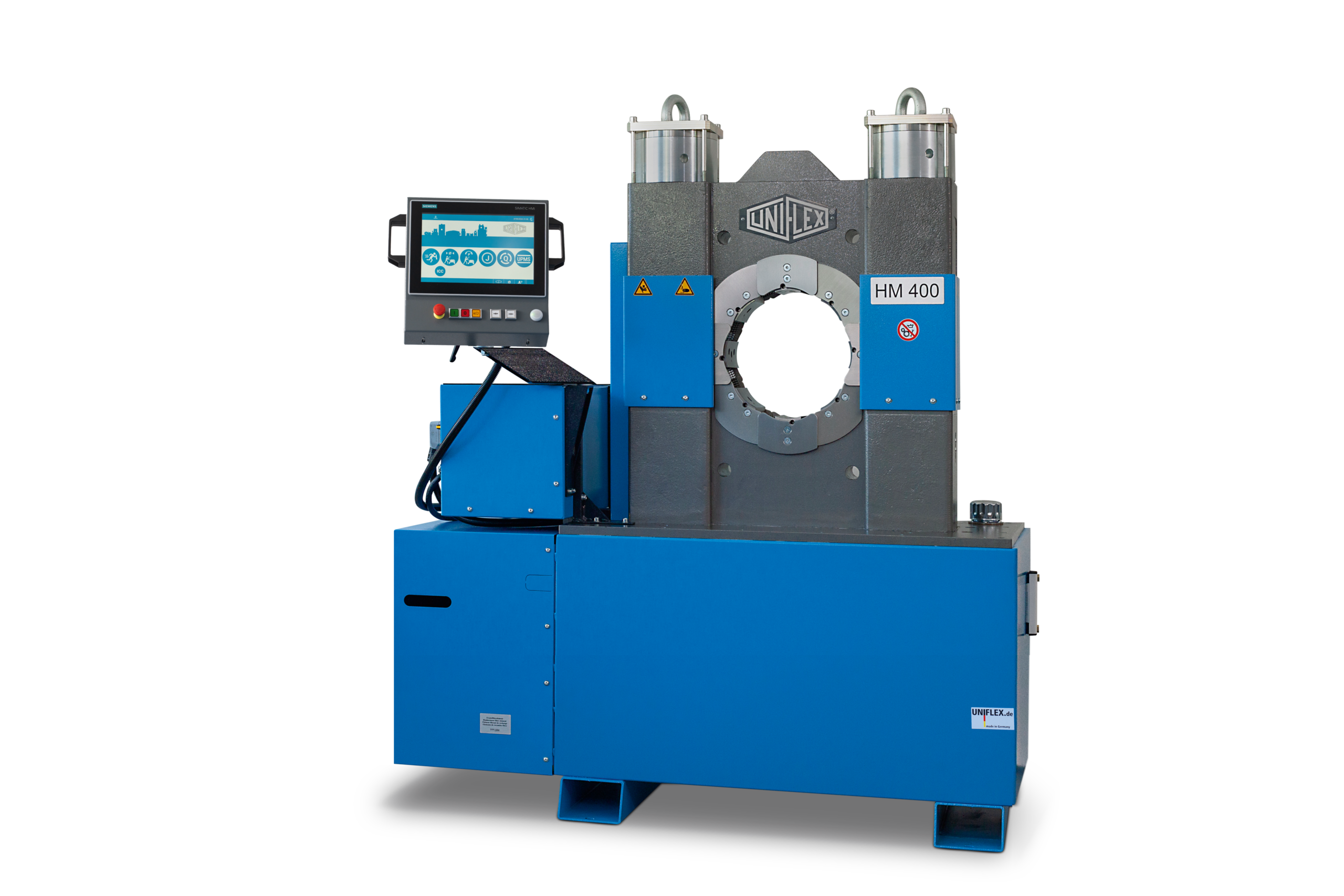

| HM 375 | HM 380 | HM 400 | |
|---|---|---|---|
| Crimp force (kN/Ton) | 3,150 / 315 | 3,400 / 340 | 3,750 / 375 |
| No grease: 20% less friction | ✓ | ✓ | ✓ |
| Control | Control C.2 + Touch | Control C.2 + Touch | Control C.2 + Touch |
| SAE R15 / 4SH 2 Piece | 3″ | 3″ | 3″ |
| SAE R15 / 4SH 2 Piece | 2 1/2″ | 3″ | 3″ |
| Industrial* | 4″ | 4″ | 6″ |
| 90° Elbows | 3″ | 3″ | 3″ |
| Max. Crimp range | 165 / 6.50 | 165 / 6.50 | 165 / 6.50 |
| Opening (mm/inch) | +70 / +0.28 | +70 / +0.28 | +70 / +0.28 |
| Opening without dies (mm/inch) | 215 / 8.46 | 215 / 8.46 | 300 / 11.8 |
| Master dies length (mm) | 126 / 4.96 | 126 / 4.96 | 126 / 4.96 |
| Type of dies | 237 L/239-xx | 237 L/239-xx | 554/239-xx |
| Speed (mm/sec) Close Crimp Open | 23 1.4 33 | 23 1.4 44 | 18 1.4 20 |
| Noise Level | 62 dBA | 62 dBA | 62 dBA |
| Drive | 4 kW 3 VAC | 4 kW 3 VAC | 5,5 kW 3 VAC |
| Oil | 100 L | 100 L | 260 L |
| L x W x H (mm) | 1,200 x 600 x 1700 | 1,200 x 600 x 1,700 | 1,500 x 630 x 1,800 |
| Weight | 750 kg | 750 kg | 750 kg |
| CGS (Conicity Guard System) | ✓ | ✓ | – |
| HiDS (High Pressure Pump Dynamic Suction) | ✓ | ✓ | ✓ |
| Options | |||
| Control IPC | ✓ | ✓ | ✓ |
* According to the fitting.
** With master dies.
Optional Extras
Accessories
Data capture and transfer
Pressure force monitoring (PFM)
Bespoke software
Paperless
Worksheet Scanner
