Uniflex HM220 – HM 222(220), HM 225

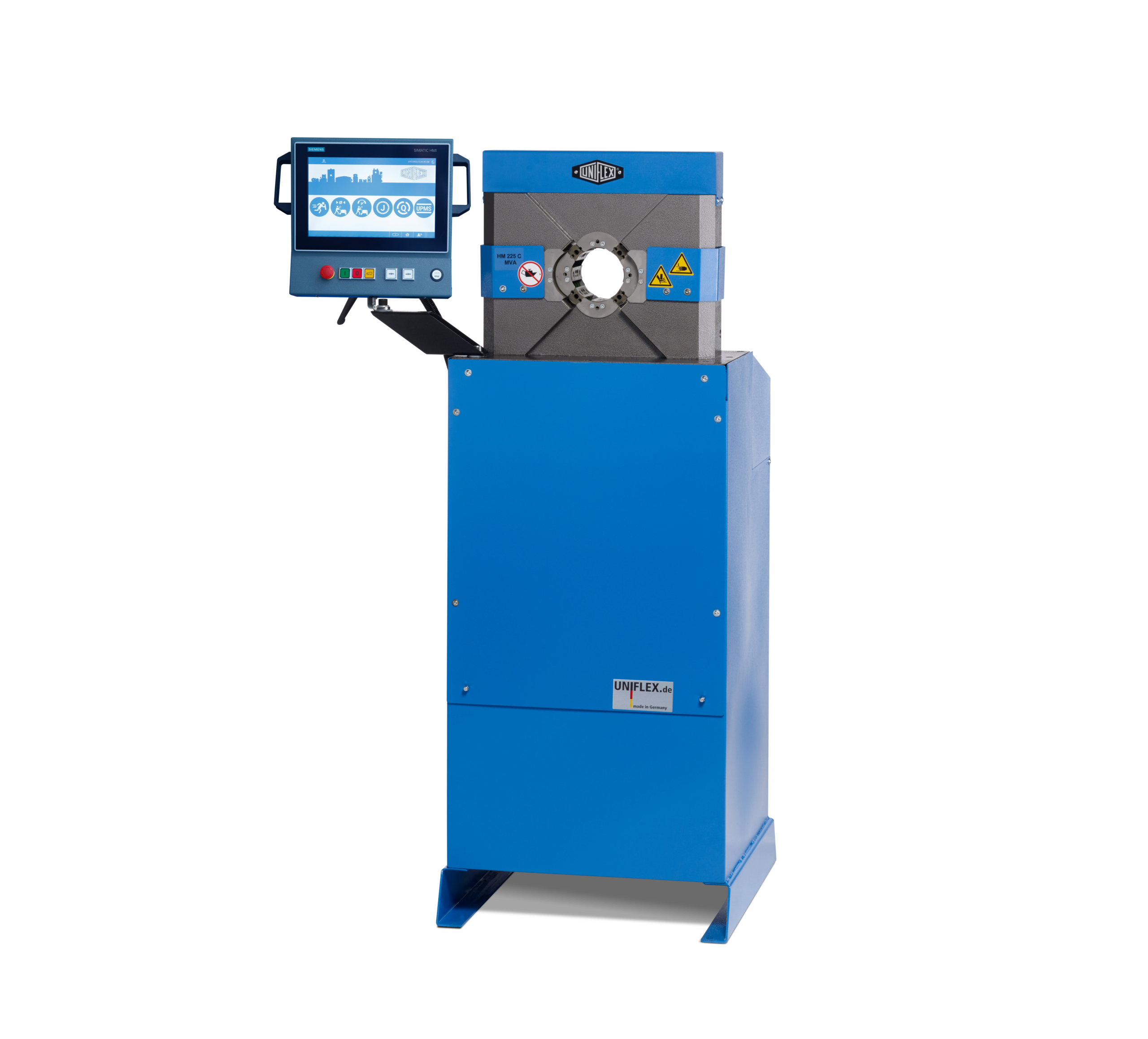

HM 222(220) | HM 225 Lean Production Crimper

Due to their narrow, innovative construction, high level of user friendliness, and long service life, the HM 22x set the standard for quality and cost effectiveness.

Their unrivaled accessibility makes ergonomic working possible – optionally from both sides – in production and series manufacture.

The tried and tested greaseless slide bearing technology reduces maintenance costs and the strong crimping force of up to 1350 kN crimps widths up to 1″.

Category:

Description

HM 220HM 225
Crimp force (kN/Ton)1350 / 1351600 / 160
No grease: 20% less friction✓✓
ControlControl C.2 + TouchControl C.2 + Touch
SAE R 15/4SH* 1 piece fitting1 1/4″1 1/4″
4SH* 2 Piece1″1 1/4″
SAE R15* 2 Piece1″1 1/4″
Industrial*2″2″
90° Elbows1 1/2″1 1/2″
Max. Crimp range70mm / 2.75″70mm / 2.75″
Opening+35mm / +1.38″+40mm / +1.57″
Opening without dies105mm / 4.13″110mm / 4.33″
Master dies length (mm)75mm / 295″90mm / 295″
Type of dies239239-xx-Ø-yy
Speed (seconds)
Close
Crimp
Open
10
5/10
10
19
1.5/3
19
Noise level53 dBA53 dBA
Drive5.5 kW 3 VAC4 kW 3 VAC
Oil80 L80 L
L x W x H (mm)645 x 560 x 1450645 x 560 x 1450
Weight310 kg470 kg
Optional Extras

Accessories
Ancillary
Data capture and transfer
Pressure force monitoring (PFM)
Bespoke software
Paperless
Worksheet Scanner

Datasheet Download

HM 222(220), HM 225

Additional information

6 Wire 2 Piece Fitting

1"
4 Wire 2 Piece Fitting

1"
6 Wire 1 Piece Fitting

1 1/4"
Industrial Hose

2"
